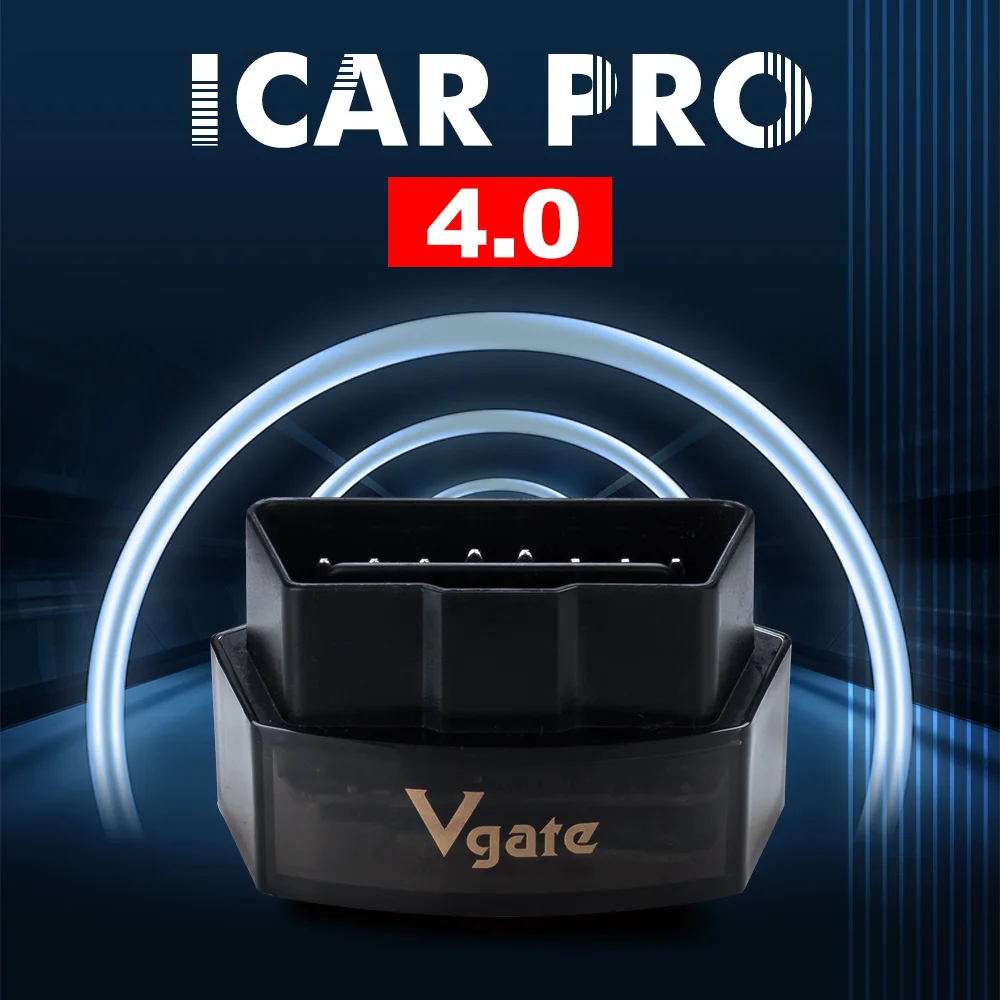

Vgate ICar Pro Diagnostic Tool
Vgate ICar Pro Diagnostic Tool

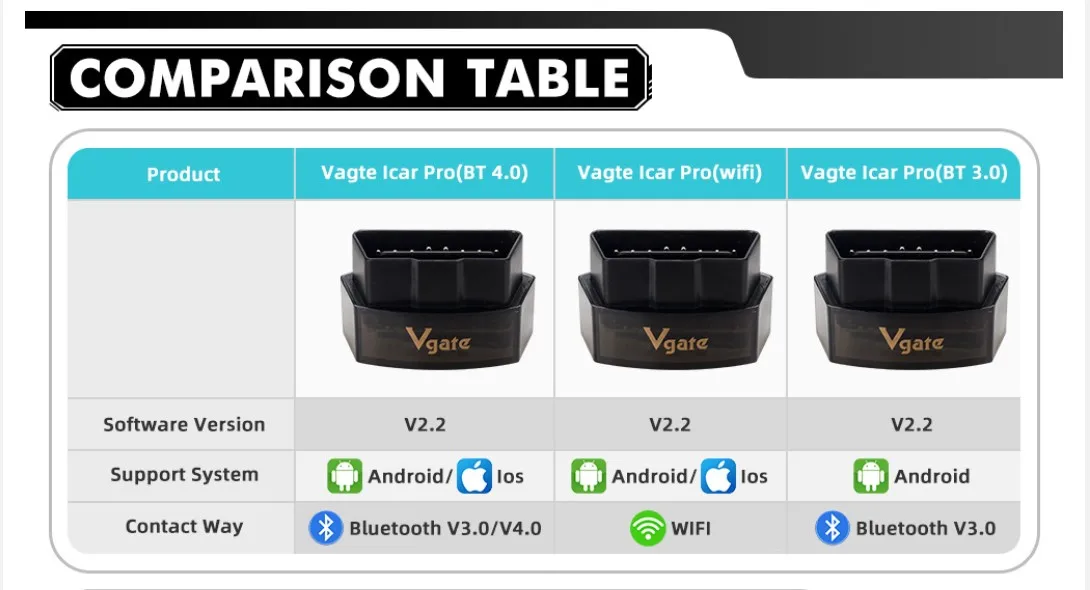

Vgate iCar Pro Bluetooth 4.0 & WIFI For IOS/Android, Bluetooth 3.0 for Android
* Bluetooth version 3.0 for andriod only
* Bluetooth version 4.0 for andriod/IOS
* WiFi Version for andriod/IOS
Purchase Notes：
1. iCar Pro's firmware version has been updated to ELM327 V2.2 for all market in the world, V2.2 adds more instructions to read more data and vehicles.
2. Our store sells the original iCar pro, we have software to test if is original iCar pro, if you need you can contact us，Avoid getting fake iCar pro from other stores
3.If you use BT4.0 to Connected, please connect BT directly in the diagnostic APP
ICAR PRO function :
Check Engine
Data Logging
Delect / Clear the fault code
Real-time Connected
Display Current Sensor data
Vehicles information
Vgate iCar Pro Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Engine RPM
Calculated Load Valu
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/ associated short term fuel trims
Fuel System status
Fuel Pressure
Many othershellip

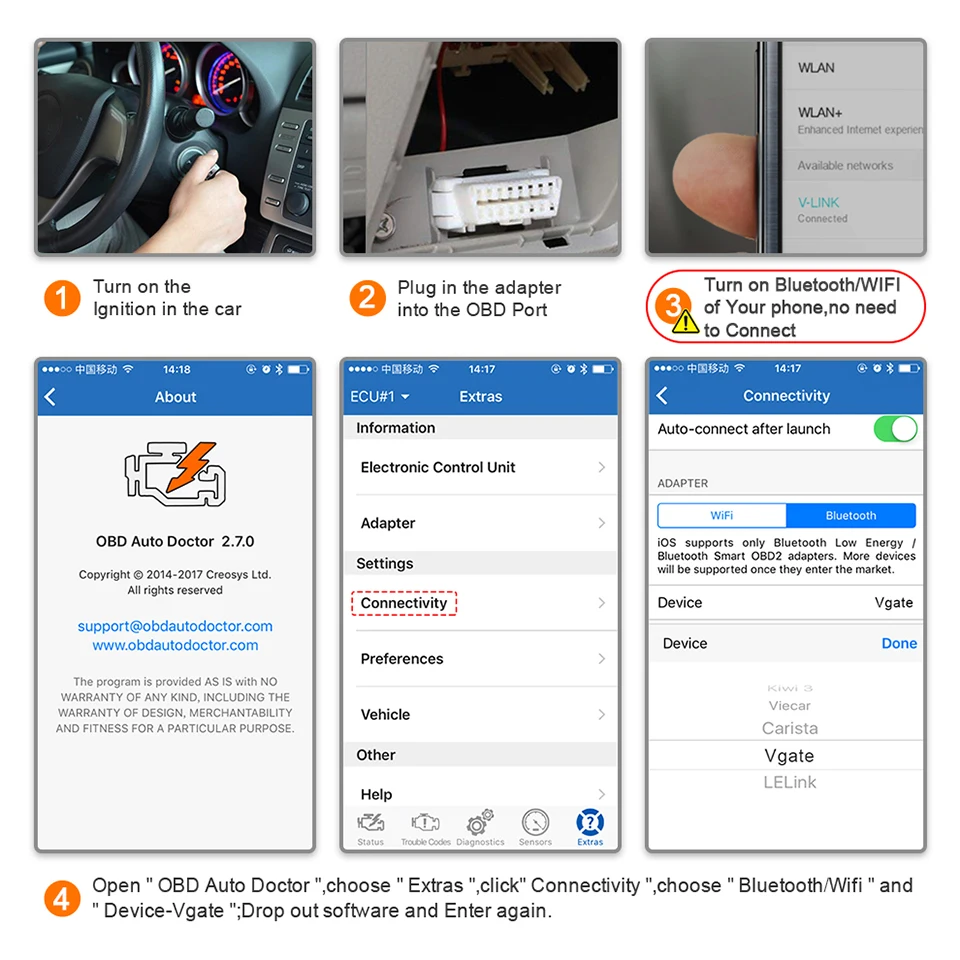

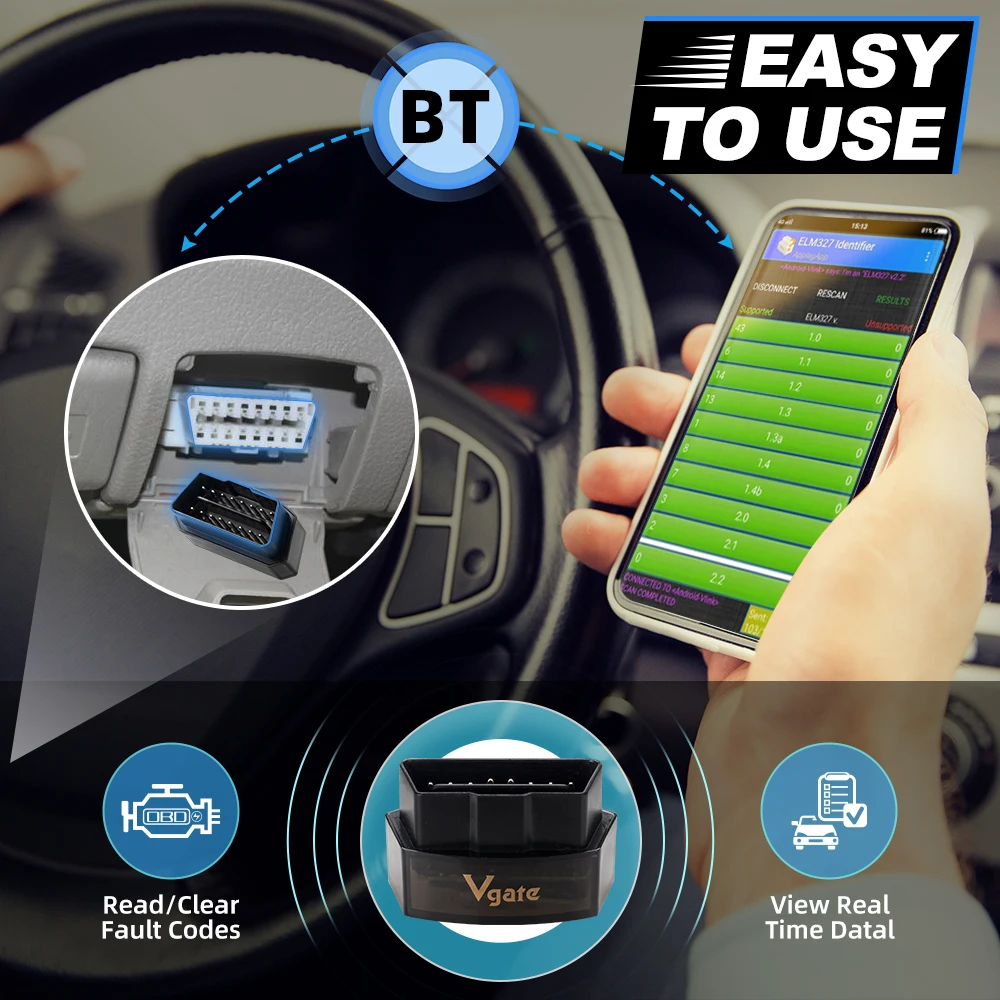

How to connect Vgate iCar Pro?
For Android
Please connect WIFI or Bluetooth-compatible directly in the software, do not connect on the phone's settings page, otherwise you will not be able to connect , Here is theBluetooth-compatible setting manual ( if your choose wifi version, pls choose wifi connect )

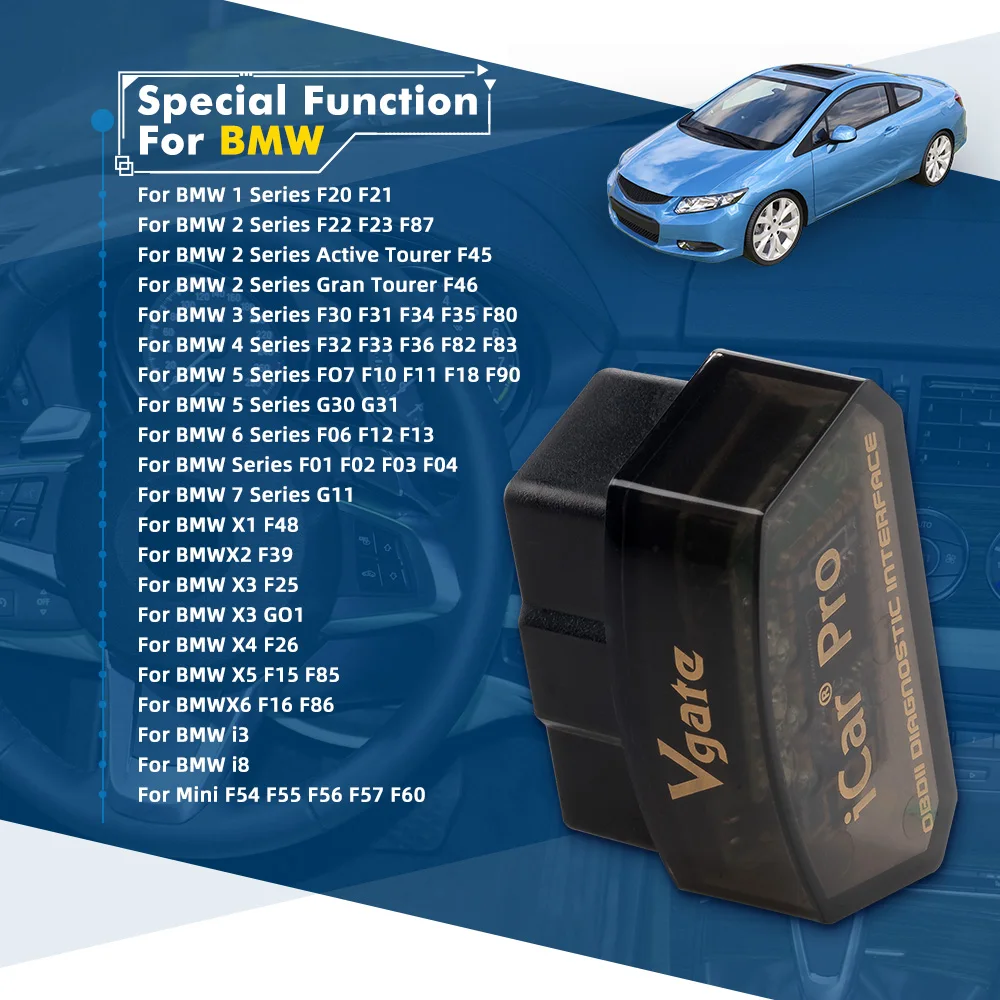

Bimmer Code for BMW-designated models

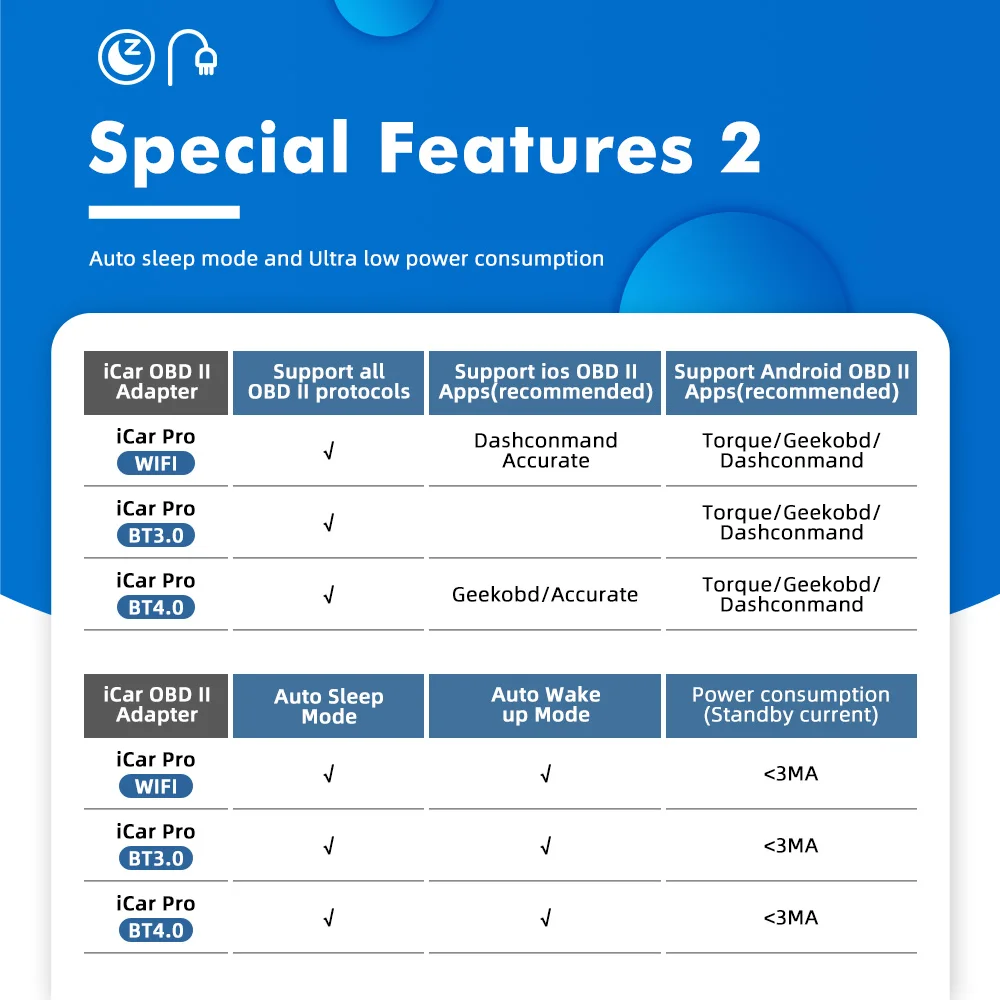

ICAR pro special features：Auto sleep mode and Ultra low power consumption

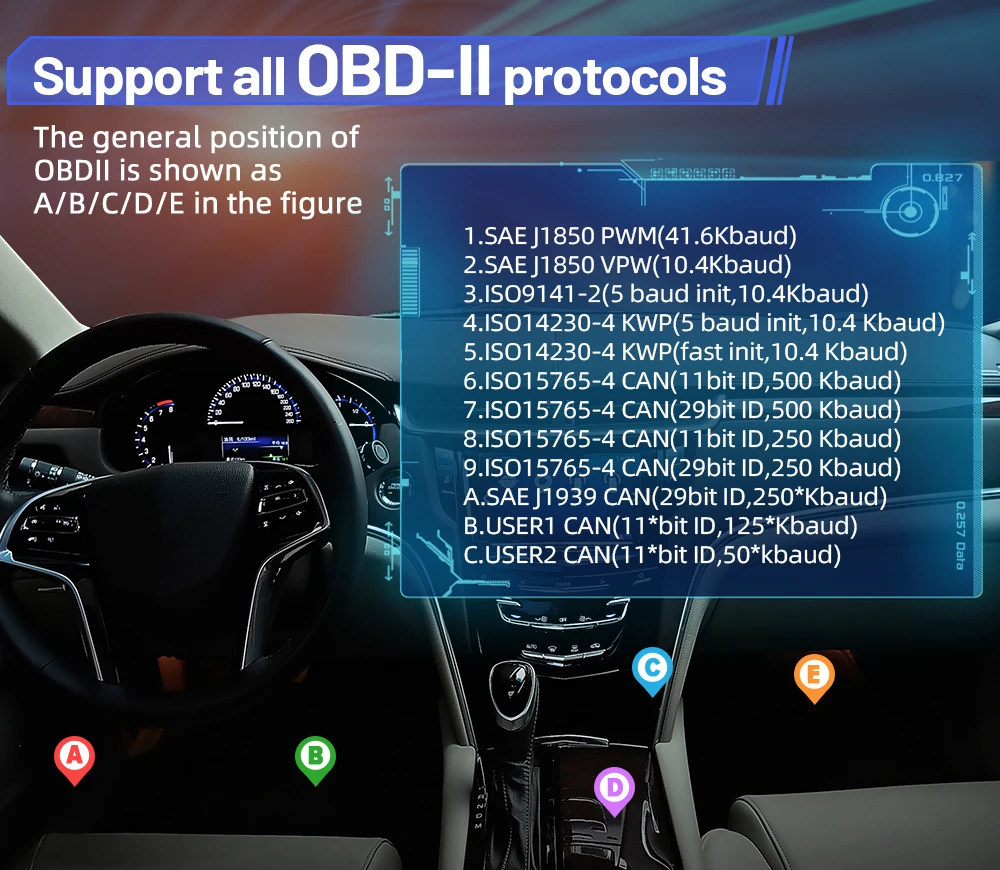

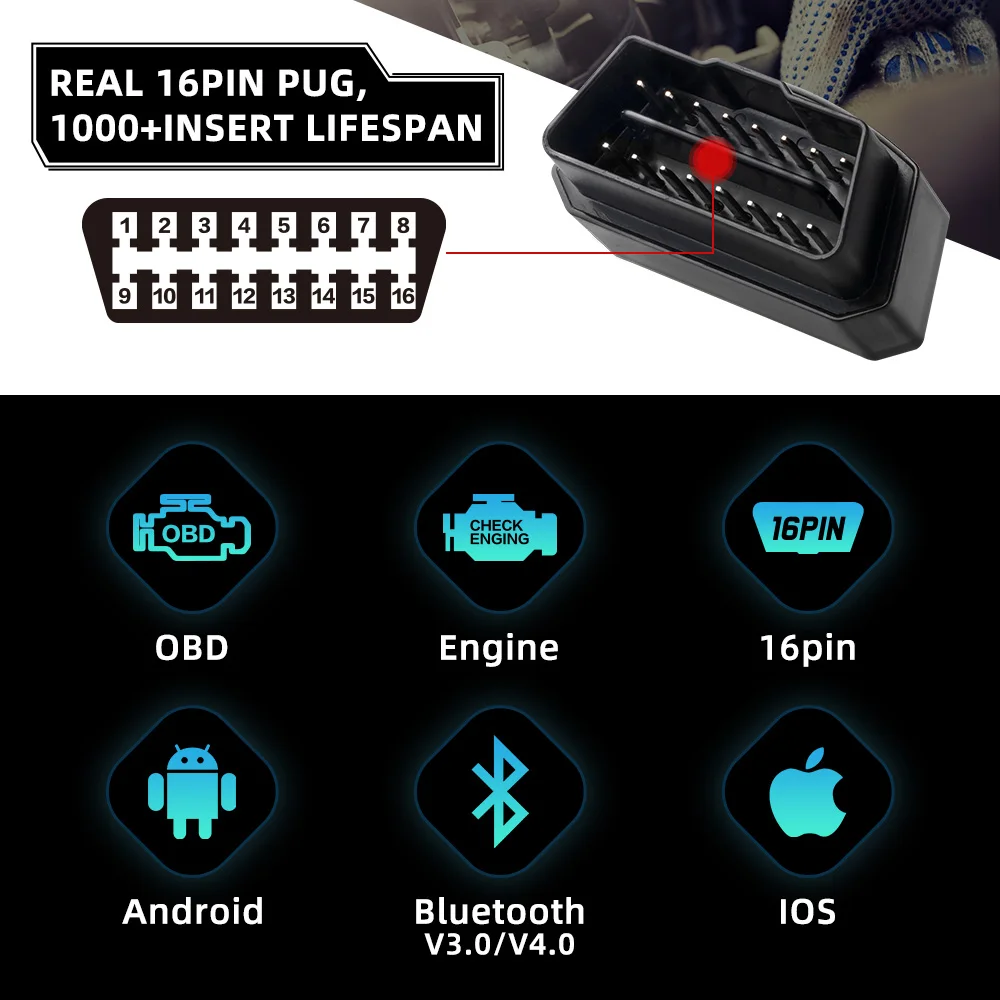

Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II protocols:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250 * Kbaud)
USER1 CAN (11 * bit ID, 125 * Kbaud)
USER2 CAN (11 * bit ID, 50 * kbaud)
* Default Settings (User Adjustable)
Vgate iCar Pro Specification:
Supply Voltage: 11.5V-15V
Supply Current: <200Ma
Standby Current: <30Ma (TONWON Pro = <3Ma)
Operating temperature: -40 ℃ - 85 ℃
Operating Humidity: 5% - 95% RH Non-Dewfall
Hardware version：V2.2
Supported systems：Android/IOS
Connection method：Bluetooth-compatible 3.0/4.0/WIFI
How to Get the software ?
There has the software QR code in the manual paper , just Scan it to download the software :

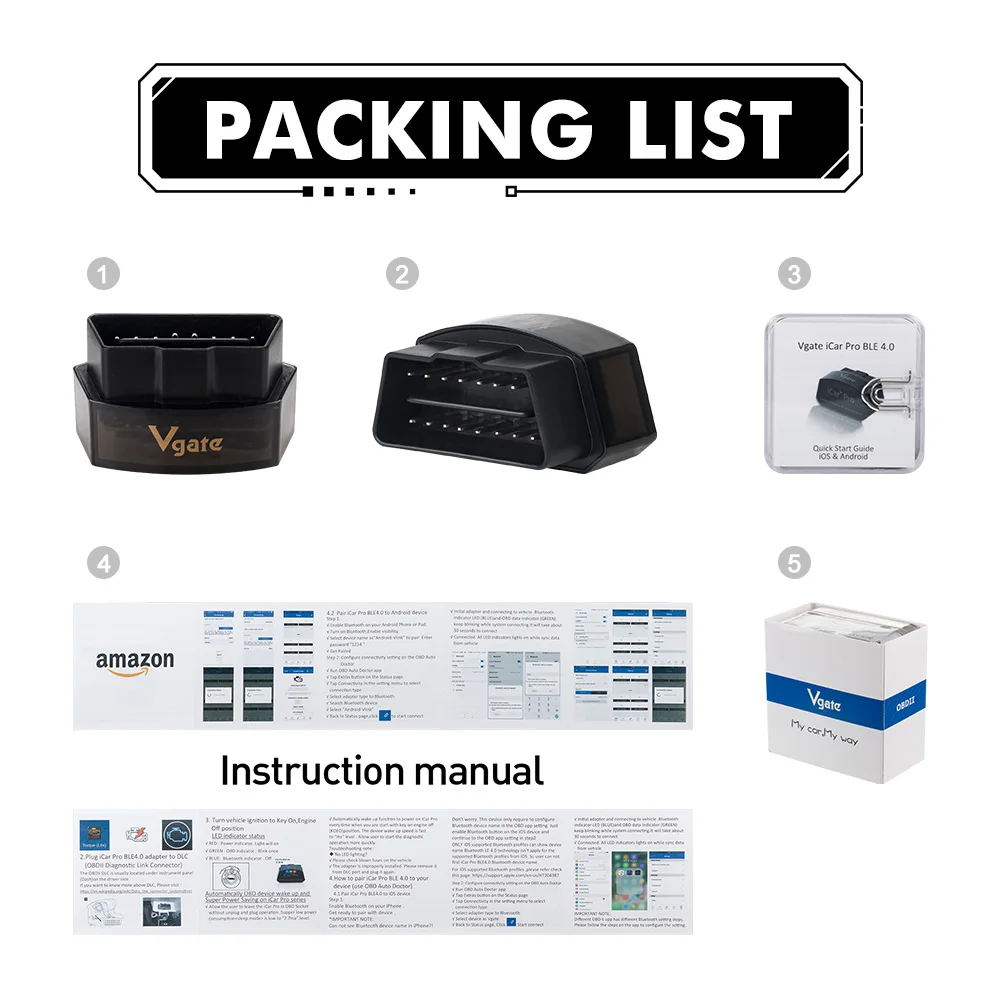

Packing List:

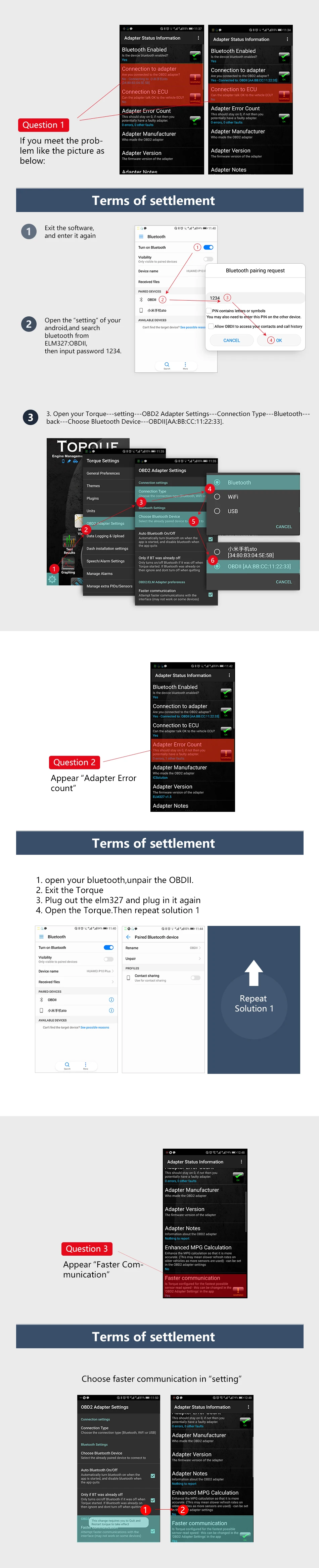

Problem settlement:
