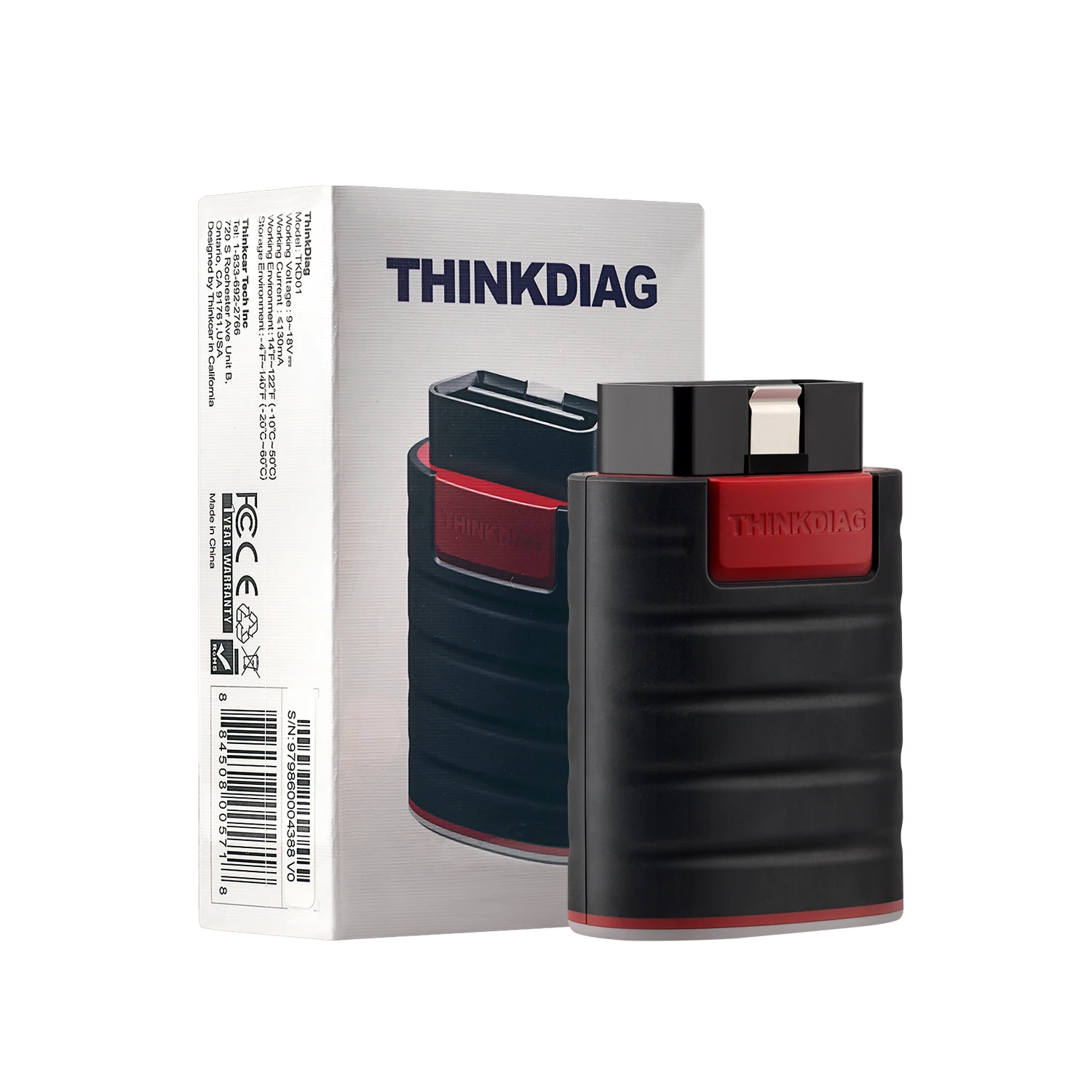

THINKCAR Thinkdiag Diagnostic Tool
THINKCAR Thinkdiag Diagnostic Tool
HINKCAR Thinkdiag New Version Full System all car 16 Reset Service 1 Year Free OBD2 Diagnostic Tool Active Test ECU Coding
Nothing is impossible.Own it, own the world
If you are an experienced DIYer who is good at fixing cars, or a professional mechanic in the area of automotive repairs, you should come across one of the best pro-level diagnostic scanners, ThinkCar Thinkdiag . The scan tool is affordable and within reach for you to get basic and advanced repairs done on modern cars effectively, to deal with pretty much every auto repair scenario you can think of.
No Need to Be a Master Tech, to Perform Like One!
Two Version of thinkdiag
Type 1.2 is 2024 New thinkcar thinkdiag ,support thinkdiag APP
Type 3.4 is 2024 hot version thinkcar,support thinkdiag APP and other APP
Selling Points:
1. Newest ThinkCar First intelligent OBDII Dongle with full OE Level Diagnostic functions!
2.Read fault Codes For All System ,such as ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, Fuel System, Light System, Wiper System, etc
3.ECU Coding. allows you to match the replaced components with ECU, flash hidden functions for BMW, for GM, for Benz etc.
4.Active Test (Actuation Test/ Bi-Directional Test) .Thinkdiag can actuates solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls. It saves much time to identify malfunction causes.
5.IMMO Key Matching.Thinkcar thinkdiag supports Add, Delete & Reprogram Keys.
6.Full System Diagnostics.Thinkdiag can diagnose the electronic control system of prevailing vehicle models covering Asian,European, American and China. Full range car models and full car system diagnose make itaprofessional automotive diagnostic tool.
Include : ABS system, Engine system, SASsystem , TPMS system , IMMO system , Battery
system ,Oil service system , SRS system , ect...
7.Full OBD II and EOBD functions for full system scans ,supports all 10 modes of OBDII standard to ensure complete, accurate, system diagnosis. Read and Clear DTCs, do smog tests , I/M readiness and O2 sensor tests, Mode 06 EVAP system test, Mode 08 on-board test component test. And OBDII Code lookup tool and acronym database to assist and speed diagnosis and repair time.
8.16 Maintenance Functions,including : Oil Reset Service,Steering Angle Calibration,Electronic Parking Brake Reset,Battery Register & Battery Maintenance,ABS Bleeding,Electronic Throttle Position Reset & Learn,Diesel Particulate Filter (D.P.F) Regeneration,Tire Pressure Monitor System Reset,Anti-theft Matching,Injector matching,Air Suspension Reset,Gearbox Reset,Sunroof RESET,AFS Reset,EGR Reset,Gear Learning（This function needs to enter the model software to find）
9.Fantastic Auto VIN, Support Automatic Autovin Scan, allows you to get your vehicle’s make, model, and year info rapidly, no need to manually enter your VIN code. You can generate a vehicle health report by one-click and easily share it with your mechanic friend for problem analysis!

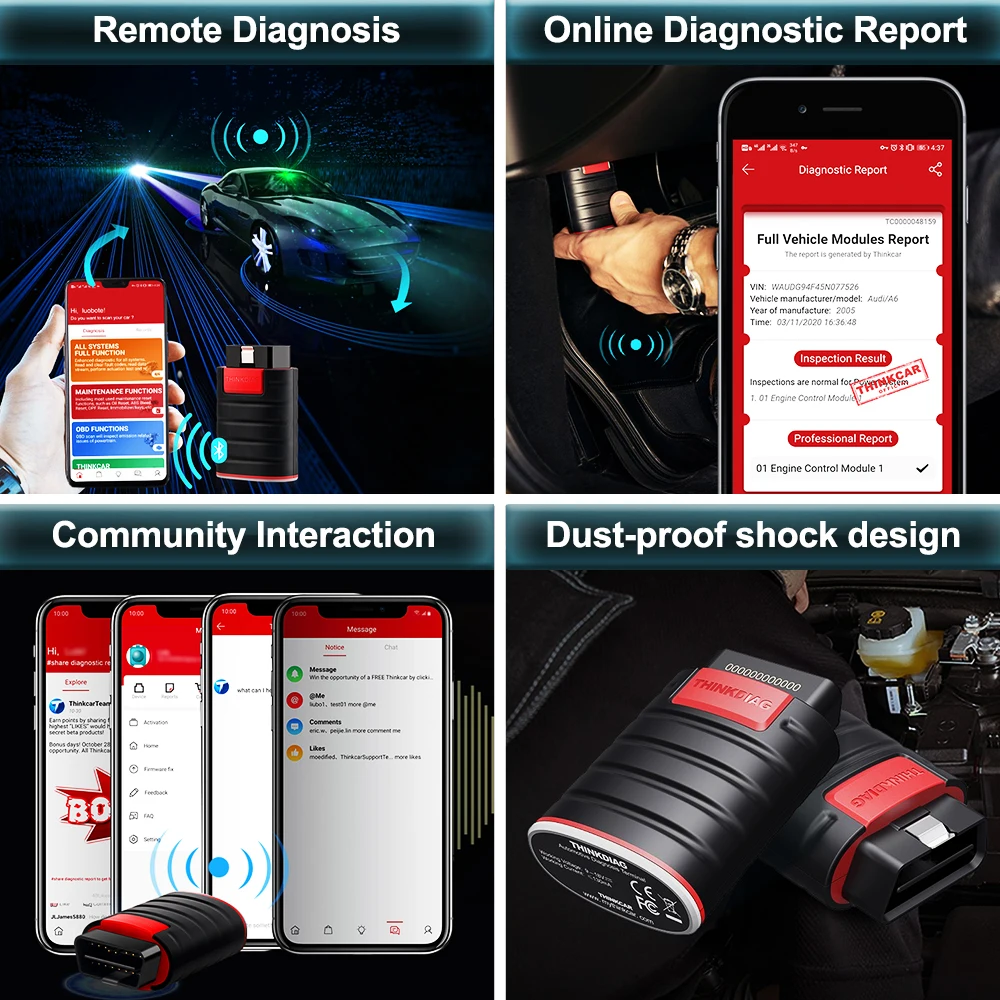

10. Live Data Stream Graphing + Data Record+Print Vehicle Health Report Print +Remote Diagnostic Car Scanner
11.Compatible with both Android / iOS smartphone and tablets
12.OE-Level car coverage. 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
13.1 year Free Update.
14. 12 Languages supported,support Russian, English, French, Spanish, German, Italian, Portuguese, Japanese, Turkish, Polish, Greece, Traditional Chinese
15.1 Years Warranty. We offer free aftersale service within 1 years.
Specification for THINKCAR Thinkdiag
Model:Thinkdiag
Working Voltage: 9~18V
Working Current: ≤130mA
Supporting systems: Android/iOS (Apple)
Working Temperature: 14℉~122℉(-10℉-50℉)
Storage Temperature: -4℉~140℉(-20℉-60℉)
Size: 2.1in*3in*1.1in
Net Weight: 2.80oz
Package List
type 1 : 1* thinkcar thinkdiag
type 2 : 1*thinkcar thinkdiag
1*OBD Extension Cable

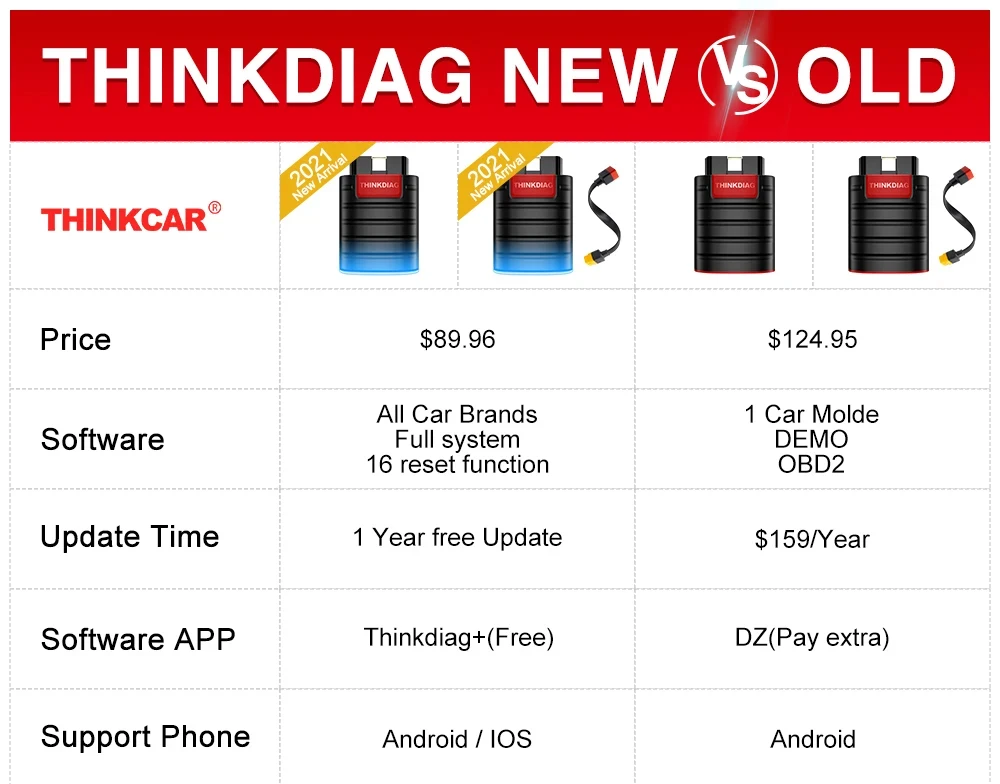

What's different with 2024 new version and old hotsale version ?(A picture is convenient for you to choose the version you want faster and more accurately.)
Thinkdiag
Thinkdiag with All Software Free for 1 year (All Software 1 year Free including 115 Car Brands, All System Diagnostic, ECU Coding, Active Test, and 16 kinds of Resets Function)

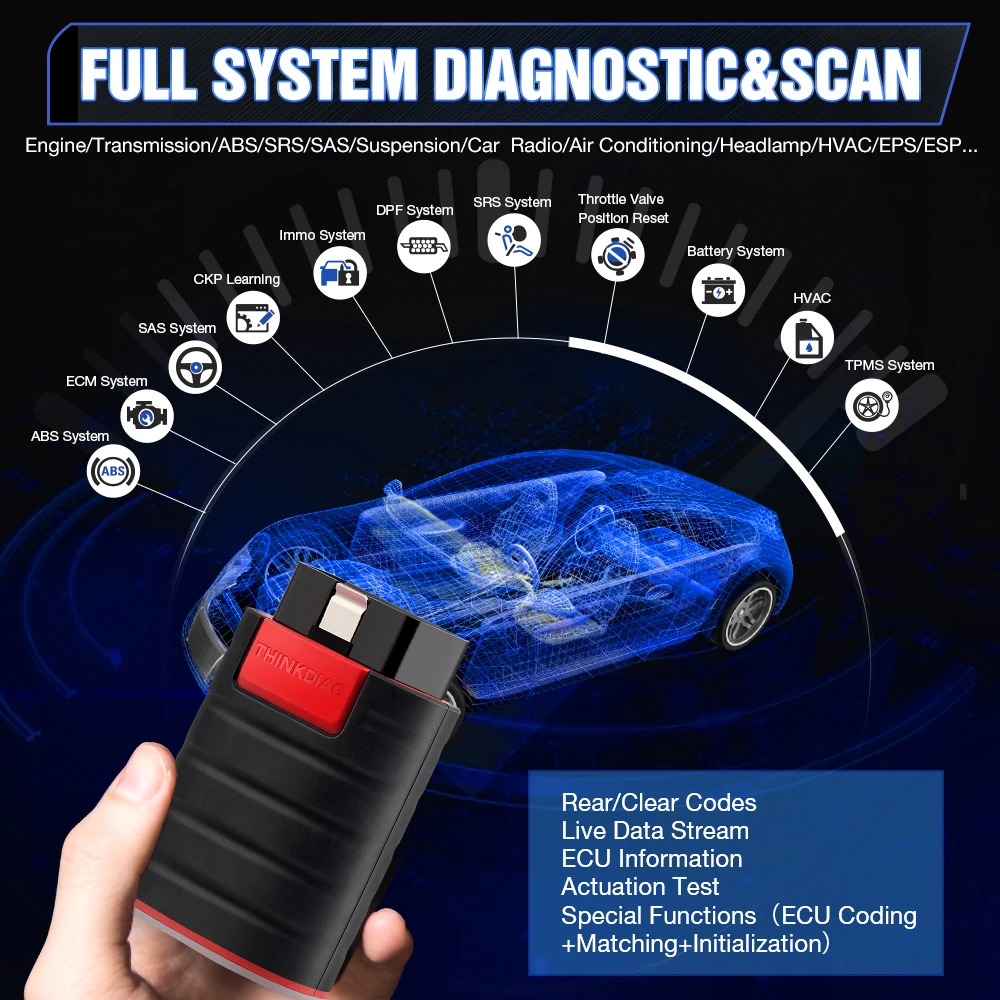

Full System Diagnostics
Thinkdiag can diagnose the electronic control system of prevailing vehicle models covering Asian,European, American and China. Full range car models and full car system diagnose make itaprofessional automotive diagnostic tool.
Include : ABS system, Engine system, SAS system , TPMS system , IMMO system , Battery system ,Oil service system , SRS system , ect...
Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Actuation Test , ECU coding and 16 Special Function ect...
ECU Coding (Customize)
ECU CODING allows you to match the replaced components with ECU, flash hidden functions for BMW, for GM, for Benz etc. No matter you are private owner or professional technician, Thinkdiag is a powerful and handy scanner tool.
Uses the ThinkDiag App to modify the adaptive data for vehicle control modules, after repairs or replacements of vehicle parts including:
[ Power Window | Illuminated Entry | Warning | Light Control | Slide Roof | Air Conditioner | Display | Unit Conversion | Entry & Start | PSD & PBD Operation | Seat … ]
Active Test (Actuation Test/ Bi-Directional Test)
Thinkdiag car code reader actuates solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls which saves much time to identify malfunction causes.
Uses the ThinkDiag App to test if the actuator is normal, without using the vehicle’s controls, to get a significant boost in effectiveness:
[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]
IMMO Key Matching
About Key Programming:Thinkcar thinkdiag supports Add, Delete & Reprogram Keys.
>>>Rewrite smart keys, All smart keys lost, Replace smart key ECU, Replace KNOB IGNITION;
>>>>Reset Key: Relearn a key (Note:this function is NOT universally compatible. Please check compatibility with us if necessary.
Thinkcar thinkdiag supports PIN Code reading for most cars before 2008 ,for vehicles after 2008,you need to have PINCode to do key programming).
If you have questions, please give me your model year and we will check for you
16 Kind of Special Functions
This OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. There is some commonly-used special reset services are listed for your reference:
1. Oil Reset
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2. Steering Angle Reset
Reset the steering angle to zero to keep the car running straight.
3. Electronic Parking Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.
4. Battery Register & Battery Maintenance
Register the battery after replacement.
5. ABS Bleeding
Help exhaust the air after repair the ABS pump system.
6. Electronic Throttle Position Reset & Learn
Initialize the throttle actuators to the default state.
7. Diesel Particulate Filter (D.P.F) Regeneration
Especially works for D.P.F system with D.P.F regeneration, D.P.F component replacement teach-in and D.P.F teach-in after replacing the engine control unit.
8. Tire Pressure Monitor System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
9. Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
10. Anti-theft ( IMMO ) Matching
Disable any lost keys and add new keys.
**ONLY for cars with an easy IMMO system.
11. Injector Coding
Write the new injector code into the car system for the correct cylinder injection quantity.
12. Air Suspension Reset
Adjust the vehicle body height sensor for level calibration.
13. Gearbox /Transimission Reset
Help complete the gearbox self-learning to improve gear shifting quality.
14. Sunroof RESET
This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.
15. AFS Reset (EGR)
Initialize the adaptive headlamp system.
16. EGR Reset
EGR Adaption is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

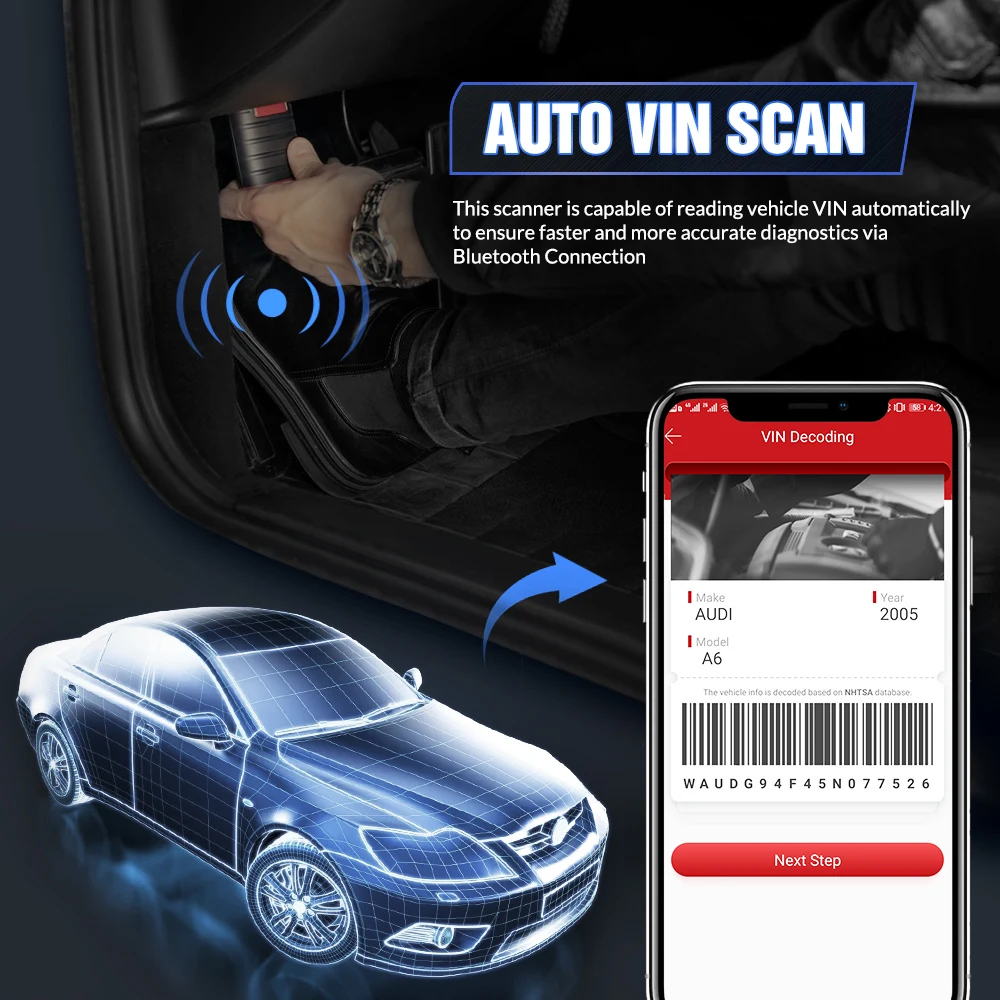

Auto Scan Car VIN Code
Thinkdiag can automatically scan the car's information, include VIN number, release year, model and engine type.Save your time.
10 OBD2 Full Function:(Lifetime Free update )
This diagnostic software can test vehicle Engine systems.All models with engine meeting SAE J1850,ISO9241-2,ISO14230-4,ISO15765 Standard in OBD2&EOBD.
1.View freeze frame date
2.support graph data stream
3.O2 Sensor test
4.Evap system test
5.On-Board monitor test
6.Read & Clear DTCs
7.Identify VIN information
8.DTC code look up
9.Turn off MIL(Malfunction Indicator Lights)
10.I/M Readiness status test

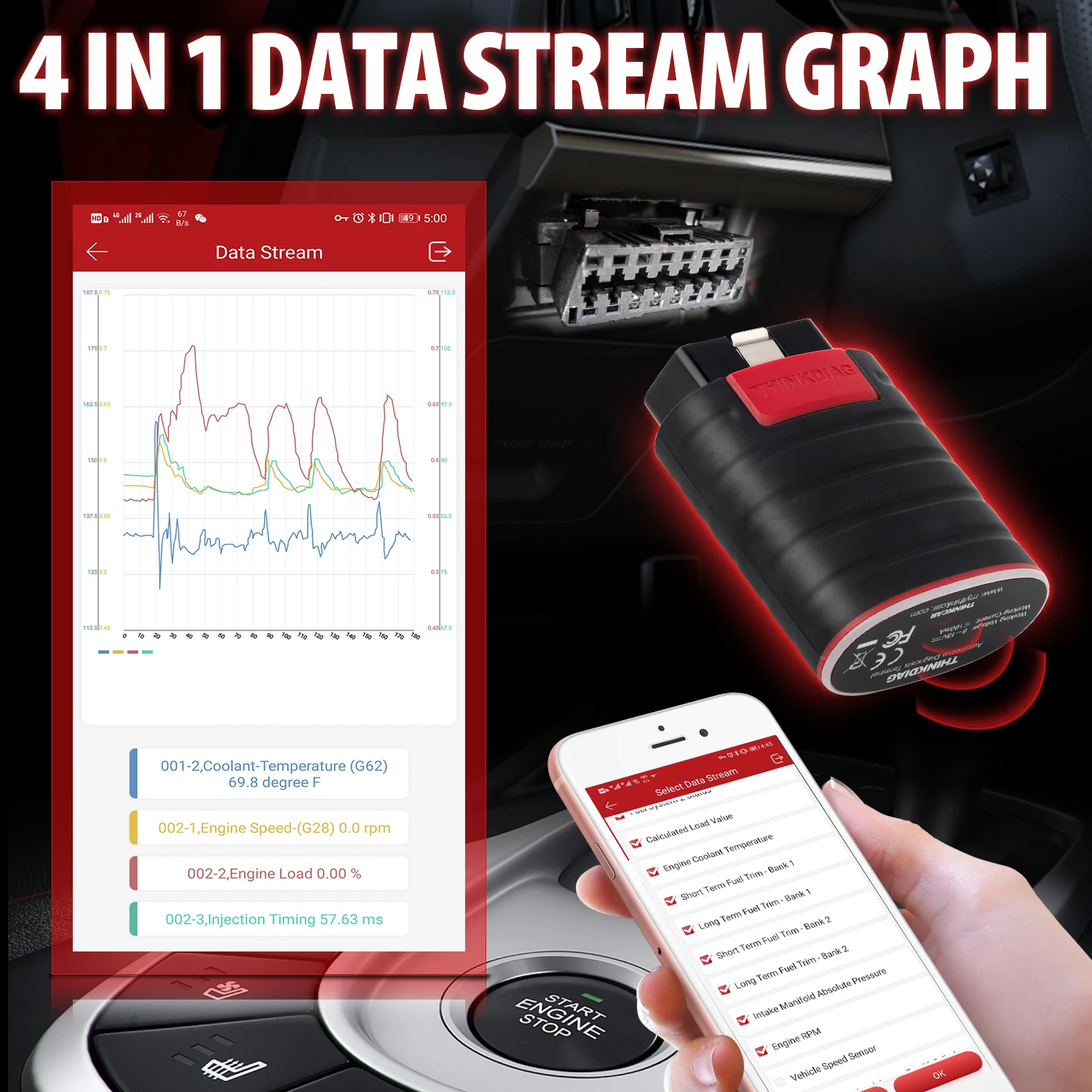

4 Data display in 1 Graph
Thinkdiag will Read vehicle’s live data, and present by graph. Optional combination of multiple data.
Live Data Stream combined Graphing+Data Record better for monitoring vehicle performance and analyze the abnormal parameter.

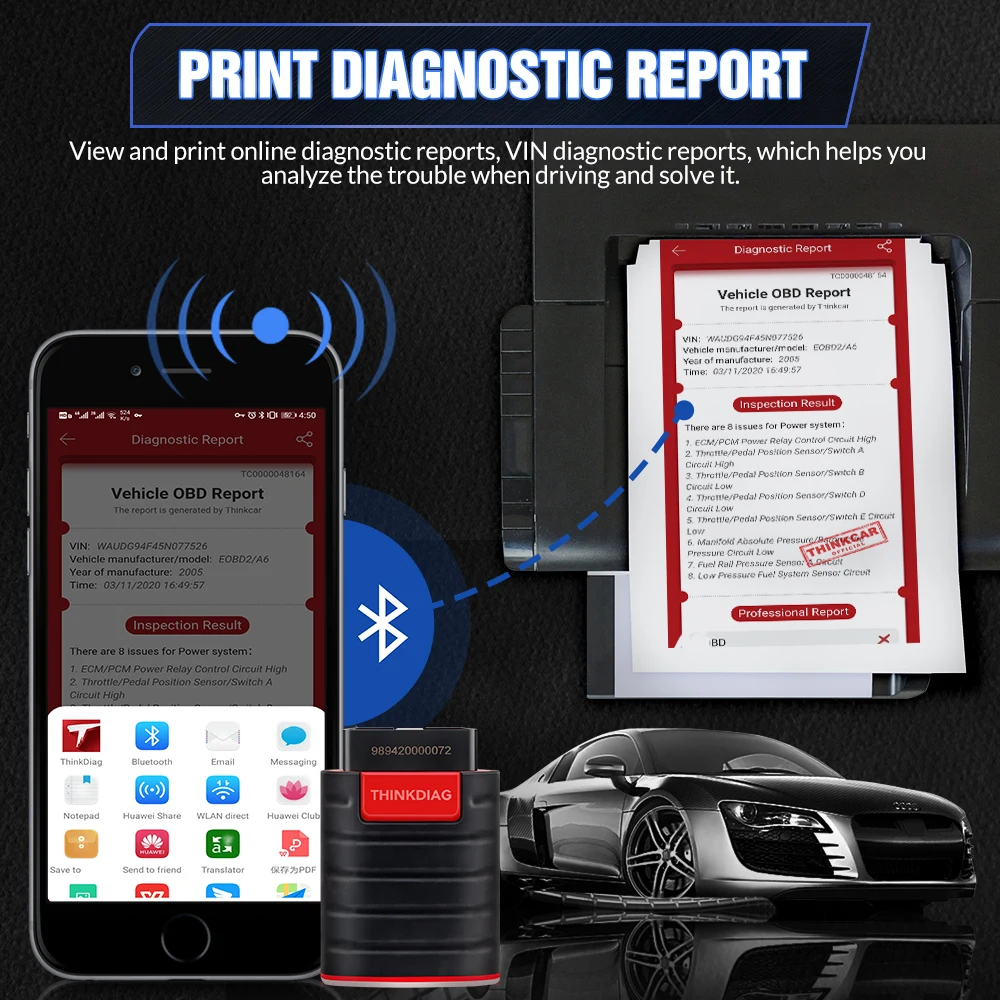

Print the vehicles report
Full system Vehicle health report will be automatically created after diagnosis, report can be shared.
Multiple language options：You can switch languages at will
Russian, English, French, Spanish, German, Italian, Portuguese, Japanese, Turkish, Polish, Greece, Traditional Chinese
Support 95% Car (Almost cars in the world )
For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:
-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers
For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:
-Asia:
for D-aewoo, for H-oda, for JP Isuzu, for K-ia, for M--da, for Mit-subishi, for N--an, for SGM, for Su-baru, for S-uzuki, for T-o-ta,for H-undai, for Ssa-ngyong
-Europe:
for A-ston Martin, for A-di, for B--z, for B-W, for C-itroen, for F--rrari, for F-at, for L-and Rover, for M-aserati, for O-pel, for P-rsche, for can clip, for R-ver, for Sa-ab, for S-eat, for S-koda, for S-mart, for Sprinter, for V*-o, for V-W, for P-eugeot
-America:
for Chrysler, for USA-F--d, for G-M
And keep updating.

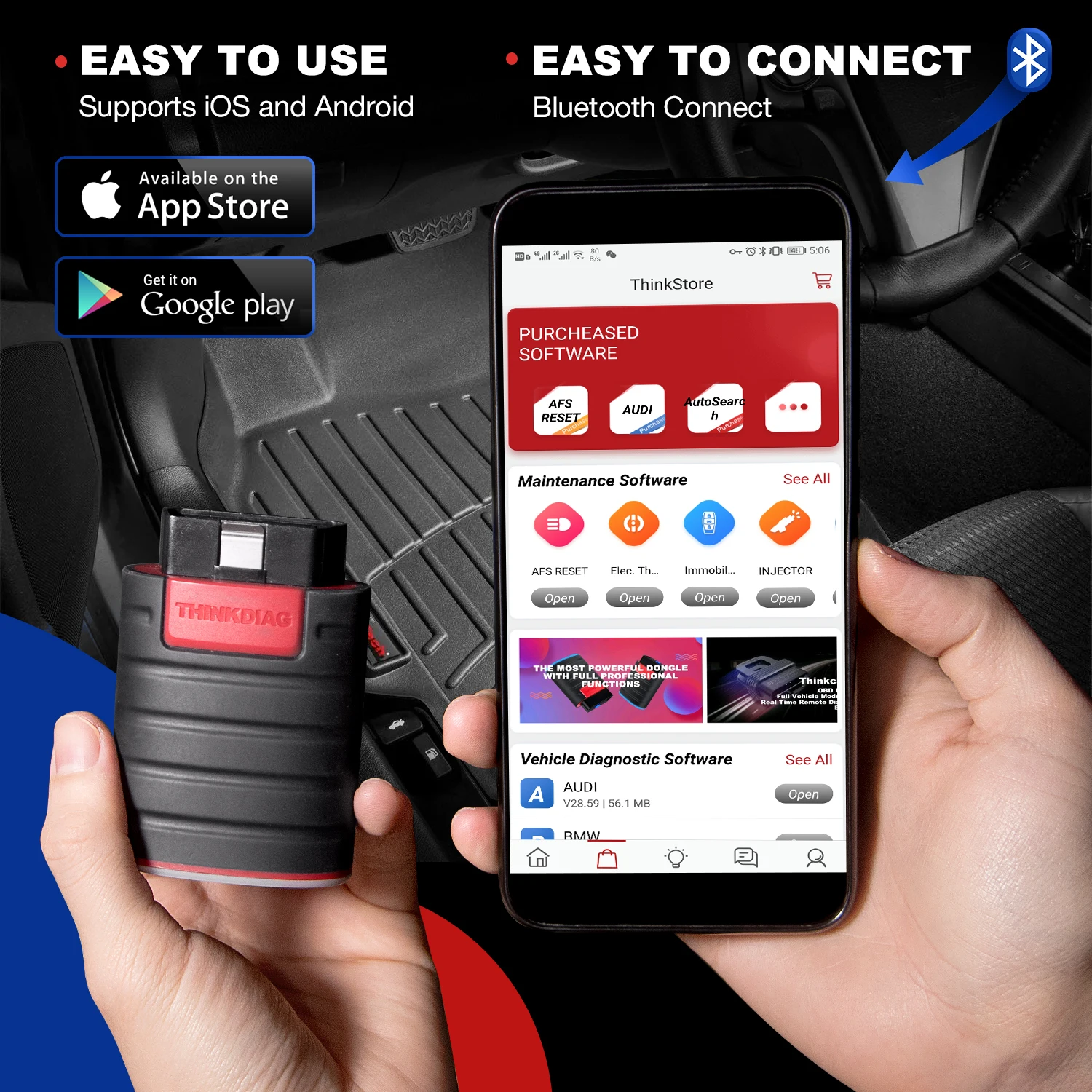

Compatible with IOS and Andoid
Easy to use and easy to connect
How to use it?( Easy to use)
If you are a novice and don't know how to install, you don't have to worry at all, because our manual has detailed installation steps, which are easy to follow.
Step 1.Download and install the APP ( APP name : thinkdiag )
Step 2.Sign In or Sign Up.
Step 3.Enter SN to Activate.
Step 4.Plug Thinkdiag to your car and Turn on the vehicle ignition.
Step 5.Bluetooth Connection
Step 6.Download Diagnostics Software and start the diagnosis.
Tips：Enter the ThinkDiag app, it will automatically search for activated devices, select your device and connect to itvia bluetooth in the app. No need to connect the bluetooth in the setting of your phone.
Thinkdiag app
1.Working app : THINKDIAG -Official app from THINKCAR Company, Provides Professional Auto diagnosis.
2.ThinkDiag App Free Download: http://apkdown.mythinkcar.cn/apk/index.php?mod=down&code=index&pid=12&id=188
3.ThinkDiag App Car List: https://www.mythinkcar.com/coverage/checklist
If your Phone is IOS, pls download ''Thinkdiag'' APP in App Store .
If your Phone is Android ,pls download the ''Thinkdiag + ''APP in Google Play.
We are the THINKCAR Official Authorized Store , with a strong technical team and support, we like technical exchanges, please consult us if you have any questions.
Item Parameter
Model:Thinkdiag
Working Voltage: 9~18V
Working Current: ≤130mA
Working Temperature: 14℉~122℉(-10℉-50℉)
Storage Temperature: -4℉~140℉(-20℉-60℉)
Size: 2.1in*3in*1.1in
Net Weight: 2.80oz
