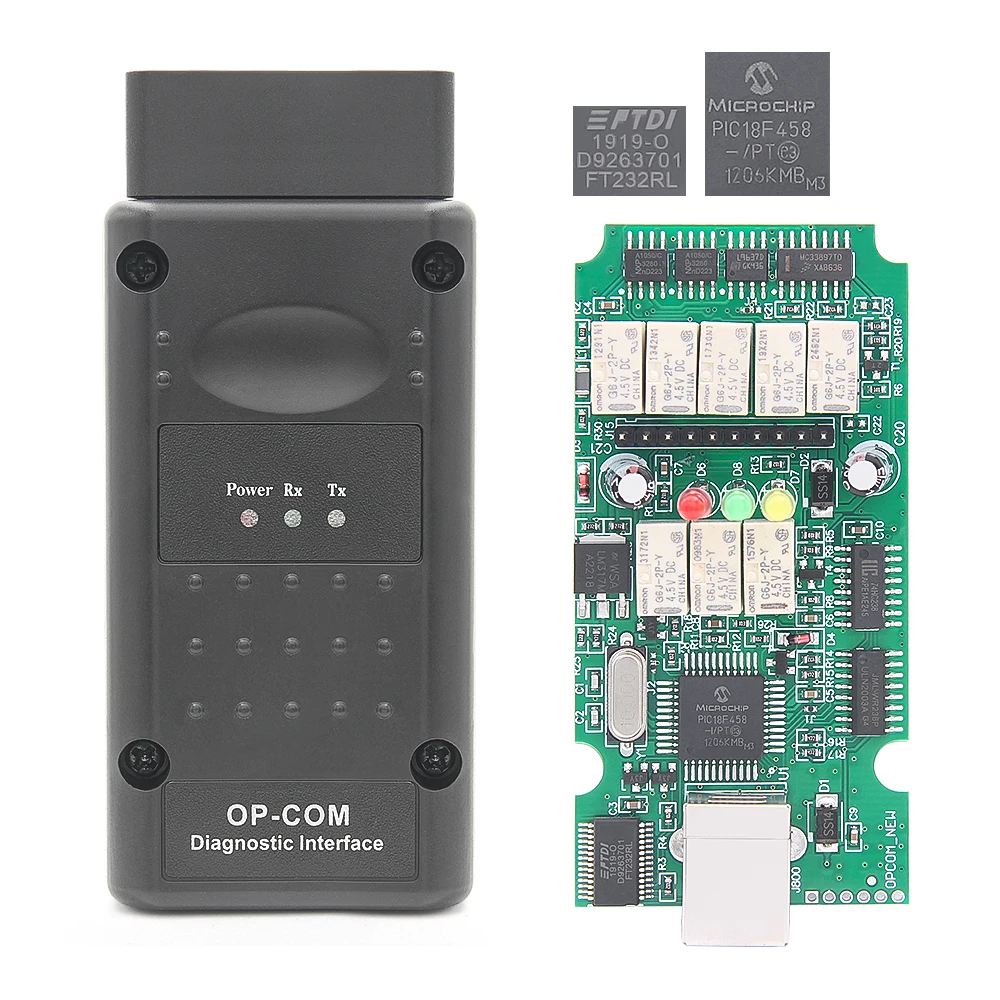

OPCOM 1.95/1.70/1.59 PIC18F458 Chip Diagnostic Tool

1.CD was easily broken during transportation process, please contact me to get the software link instead of opening disputes.

2.Only OPCOM 2021 can support cars until 2021. OPCOM V1.70/V1.95/1.99 support cars until 2014,

Only Opcom 2021/Opcom 1.95/Opcom 1.70 can be Update and Flash

3.If the driver is not recognized after the installation, please contact me to get the latest driver download link.

4.Please close the anti-virus software when installing the software!!!!!!!!!!

5.Opcom only support English!

In the 201008 software that supports car model in and before 2010, there are19 languagesavailable in the setting!!（English, Magyar, Romanian, Danish, German, Turkish, Slovakian, Netherlands, French, Spanish, Portuguese, Bosnian-Groatian-Serbian, Polish, Swedish, Russian, Dutch, Czech, Greek）

1.read out and clear fault codes

2. Engine

3.Automatic Transmission

4.ABS

5.Airbag

6.Engine Cooling module

7.Instrument Cluster

8.Electronic Climate Control

9.Body Control Unit

10.reset, and program ECM

11.reset, and program BCM

12.reset, and program IPC

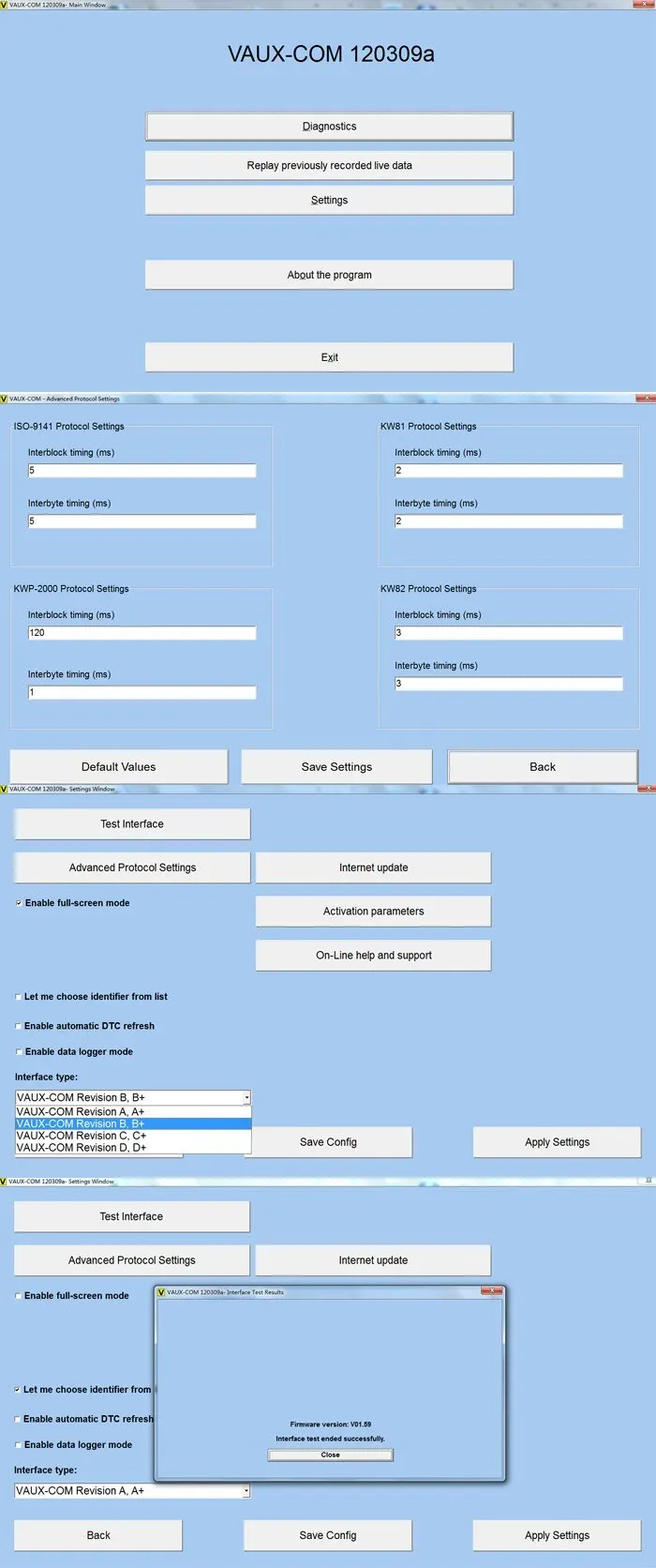

Attention for Latest Opcom Software VAUX-COM_120309a.exe:

1. If you run it on XP or Win7, please make sure you install dotnetfx35_SP1 system patch, or Opcom software can't perform well

2. When you install on Win7 and open software, please choose Run as administrator, and read the installation video on CD carefully

1) Full status information (Present, Not present, Intermittent)

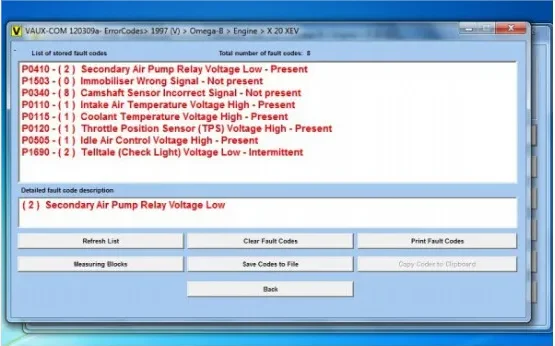

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bo-sch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

New OPCOM V1.70 Firmware 2014V Software Function:

1. It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as for Vectra-C,for Astra-H,for Zafira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information.

Please do not update this one online.
